Project 3

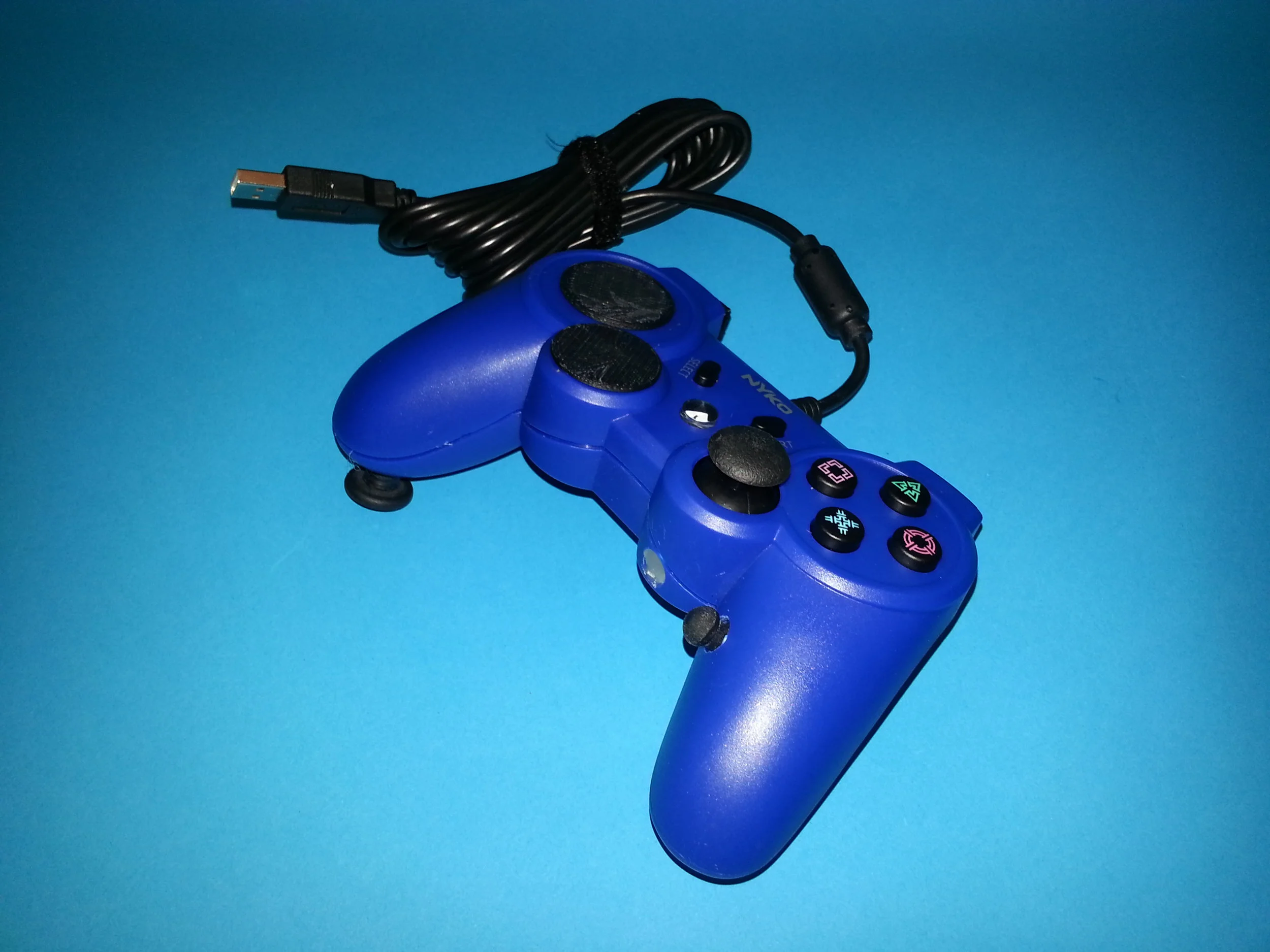

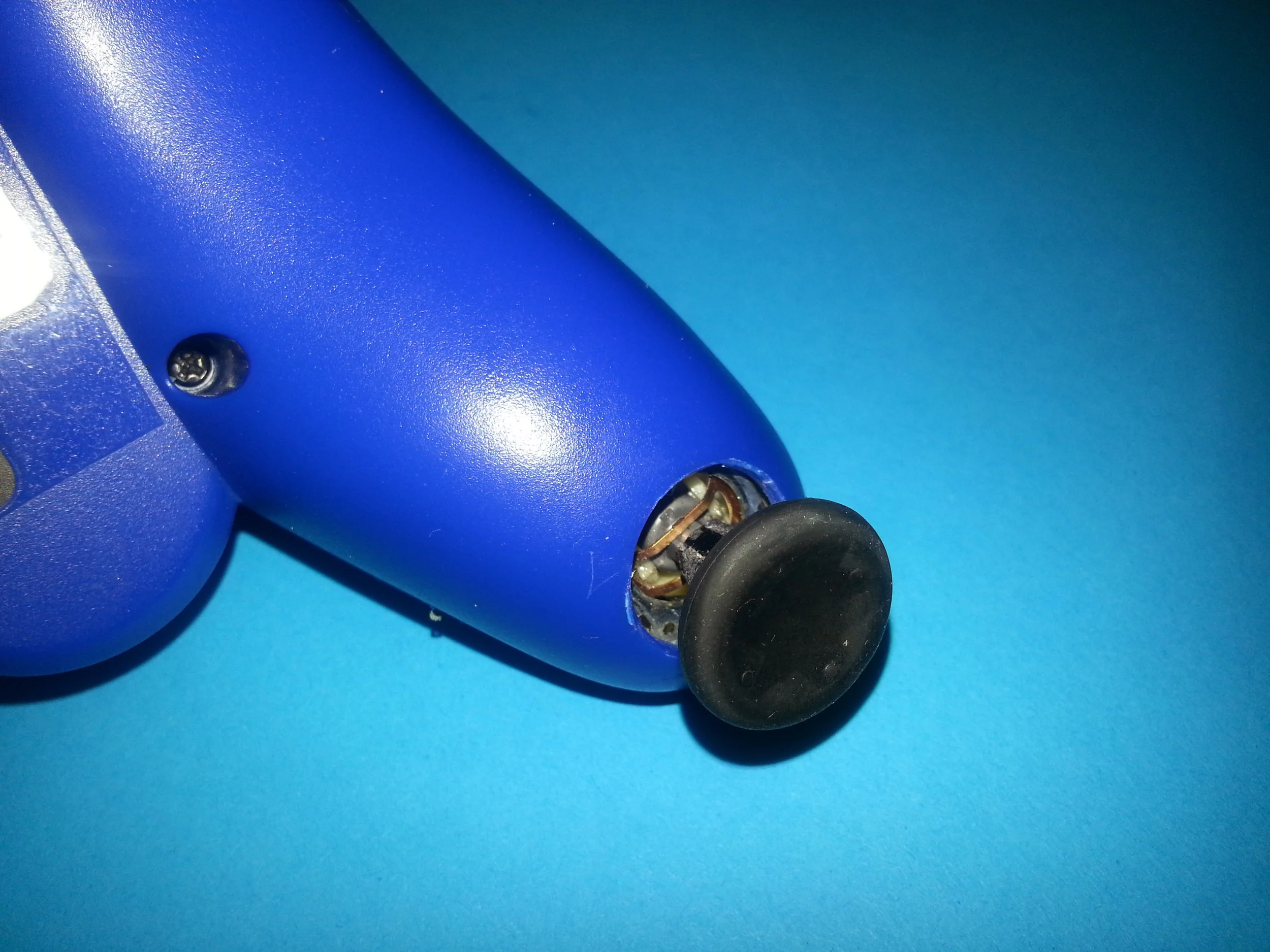

This PS3 controller was main for a wounded warfighter with very limited function in his left hand. All controls on the left side needed to be re-mapped. Foot controls were not preferred. The left joystick was relocated face-down to the right underside and caused the removal of the right rumble motor.The user would move the entire controller with his right hand to perform the left joystick function. The d-pad functions were relocated to a small eight-way button his right thumb would use.The L1 and L2 functions were moved to the right underside. The result was a very busy right side but very functional for the user.
